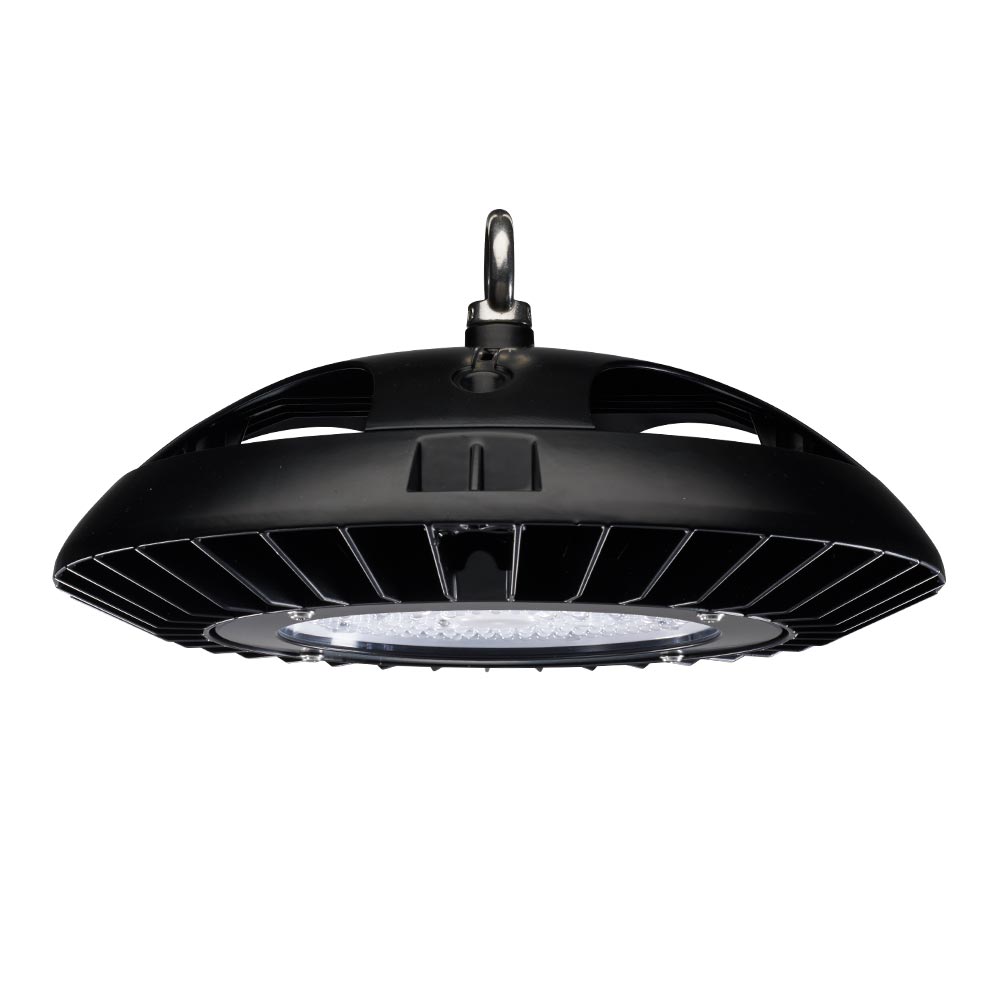

Cloud High Bay Light Wide symmetrical optics
| Code | L100145E |
| EAN | 8020295036487 |
| Equipment color | Black |
| Power supply | 220÷240V 50/60Hz |
| Power (W) | 100 W |
| Light source | LED |
| Light color | 4000K |
| Power factor | 0,98 |
| Optic | Symmetric |
| Beam angle | 90° |
| Source stream | 15505 lm |
| Application flow | 14096 lm |
| Lifetime | 100000 h |
| Lumen maintenance | L80 |
| Insulation class | I |
| Operated Temperature | -40°/+50° |
| Weight | 5,85 kg |
Description
Type of appliance
LED luminaire for industrial environments.
Areas of use
Warehouses - Production facilities - Trade fairs and exhibition halls - Dwellings and outdoor covered spaces - gyms or other indoor sports facilities.
Optical system
Optical system made with polycarbonate lens optics. Anti-aging silicone seal with high level of springback elasticity recovery.

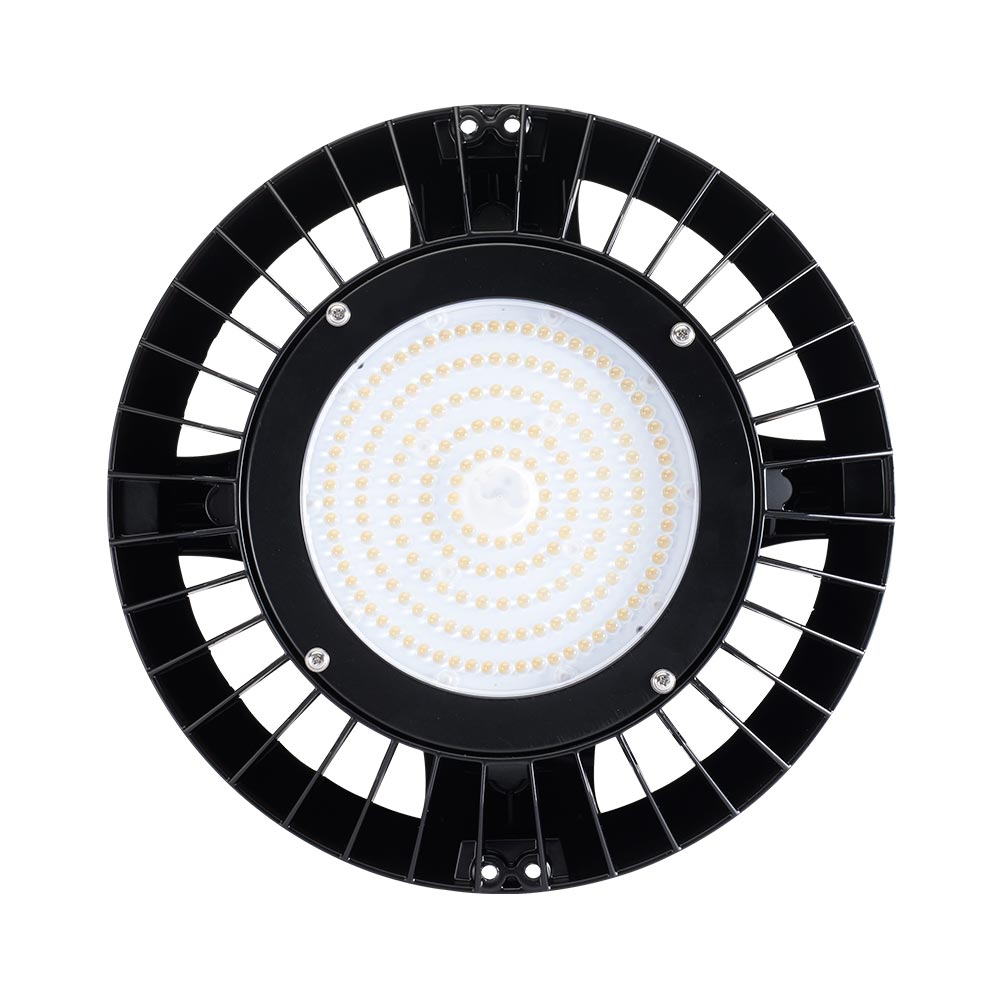

LED system
LED system consisting of a LED module mounted on aluminum die-casting body.
Body of the appliance
Die-cast aluminum body painted with polyester powders. Galvanized steel suspension hanger. External stainless steel screws.
Electrical connection
Electrical connection via IP67 external connector that allows connection to the mains without opening the luminaire body from Ø 9 to Ø 12 mm.
Electrical version
With dimmable and programmable driver 1/10V with external emergency kit.
